Jay Racing Pro Series 342 Fuel Pump E85 Ethanol -6AN 340 LPH

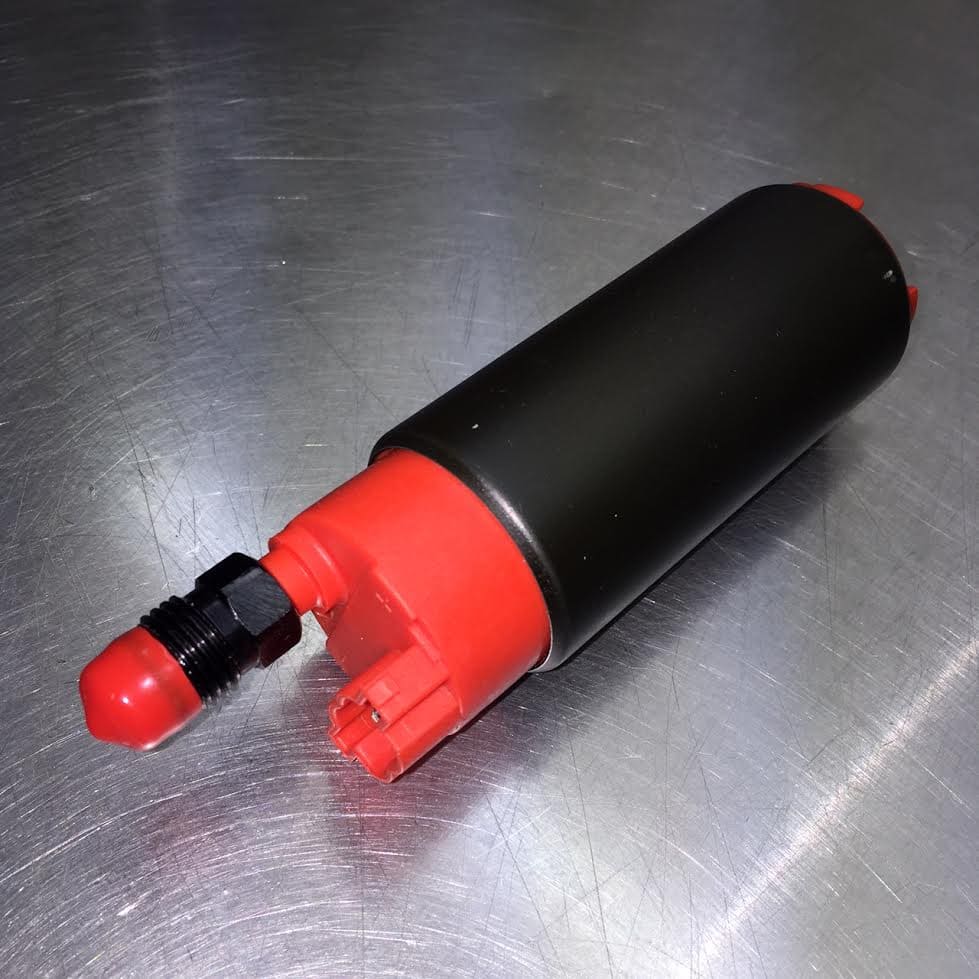

ay Racing Pro Series part# PT342E-AN6 Standard replacement for the 11mm inline inlet “340 style” high pressure pump (AKA Walbro 255HP High Pressure 255 LPH size and configuration).

Pro Series fuel pumps have been specifically designed for extreme motorsport applications.

Each Pro Series fuel pump comes with a full data sheet for the pump.  Detailed flow figures using a UKAS calibrated test bench are supplied with the pump.  The data sheet is dated and displays, amp draw, voltage, pressure, flow and is taken over 3 different pressure readings.

340 LPH @ 40 psi, 270 LPH @ 5 bar!  Be 100% sure of the flow figures your pump will provide!

Full kit including filter, hose, clips, electrical connector, and PTFE coated wire, not cheap PVC which will swell up after very little running.

Jay Racing Pro Series PT342 vs Walbro GSS342 (255HP).pdf

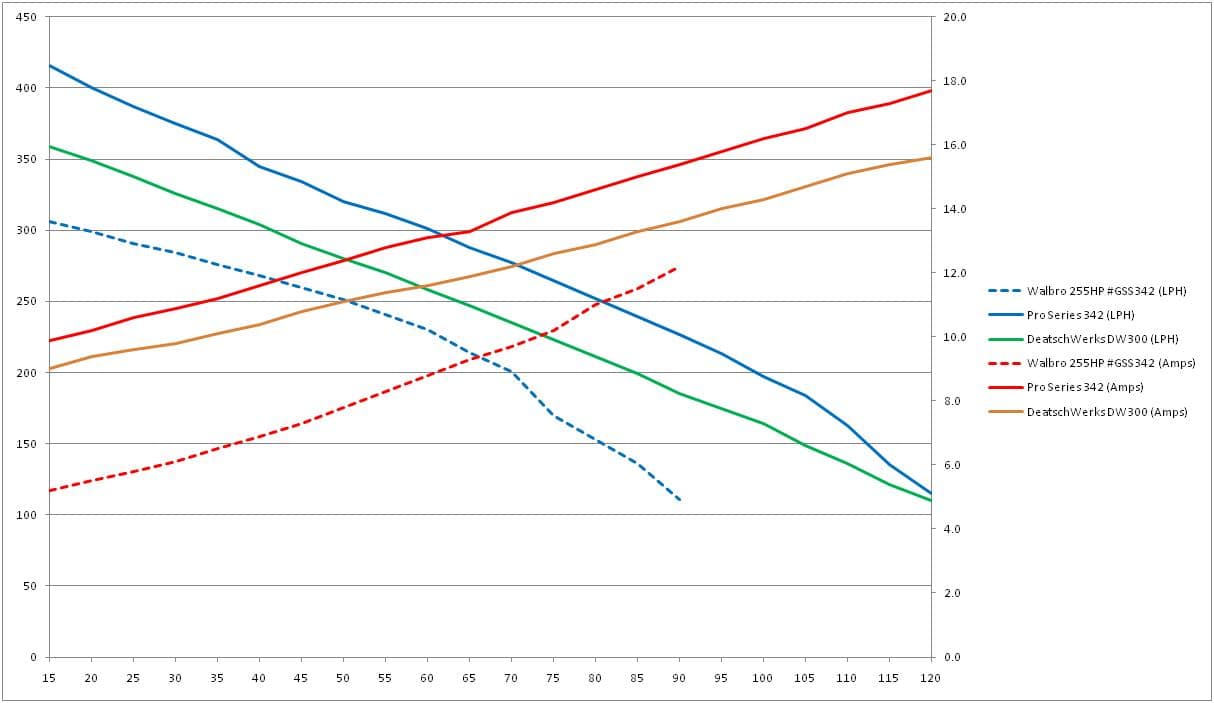

Jay Racing PT342 vs Walbro GSS342 (255HP) vs Deatschwerks DW300

or DSM applications this pump fits the following:
All 1G FWD DSMs (1G AWD DSMs use PT341)
All 2G DSMs

Applications (Partial List):
Acura
Integra 1994 – 1999

Chrysler/Dodge/Plymouth
Eagle Talon 1990 – 1994 & 1995 – 1998
Plymouth Laser 1990 – 1994

Ford
Mustang Cobra 1996 – 1997
Probe GT 1993 – 1997

Honda
Accord 1994 – 1997
Civic 1992 – 2000
Prelude 1997 – 2001

Mazda
Miata 1994 – 1997

Mitsubishi
Eclipse 1990 – 1994 & 1995 – 1999
Evolution 8 & 9 2003 – 2006

Nissan
200SX 1995 – 1998
200SX SE-R 1995 – 1998
Sentra 1998 – 1999 255
Sentra SE 1998 – 1999

Subaru
Impreza WRX / STI 2002 – 2006
