Jay Racing Pro Series Inline “Veyron” Brushless Screw Fuel Pump

ay Racing Pro Series Inline “Veyron” Brushless Screw Style Fuel Pump

This state-of-the-art engineered screw-pump sets a new standard in high-performance. The new dual screw-design exhibits high-flow with minimal pressure drop-off and heating while operating at elevated pressures. The pumping element is used as factory equipment in the Bugatti Veyron and other super-cars. This pump will support over 1000HP+ reliably and quietly making it the best performing pump currently on the market. This pump is compatible with gas, E85, and diesel. This pump is designed to run external.  For intank version, please see Jay Racing Pro Series L5LM “Veyron” Brushless Screw Style Fuel Pump

High Performance Brushless Fuel Pump
• Over 700ltr/h open flow
• Very low amp draw
• Unique serial number, full traceability
• Suitable for all popular race fuels
• Suitable for E100, M100, Bio Fuels, Diesel Fuels
• Quiet and reliable screw type impeller,
over 5000 hr lifetime.
• 1 Year Warranty

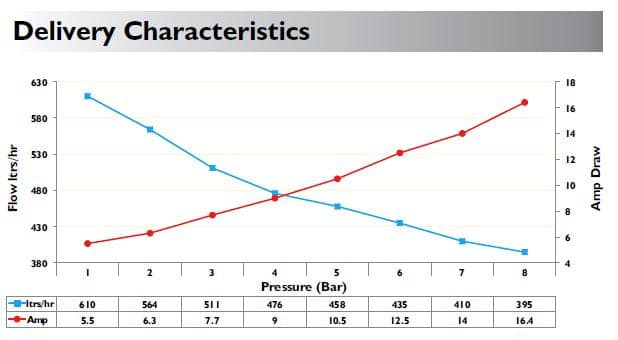

Pressure(Bar)    1      2      3     4      5      6      7      8
Flow (Ltrs/hr)    610 564 511 476 458  435  410 395
Current (Amps) 5.5  6.3  7.7    9   10.5 12.5  14  16.4

Dimensions: 2.5″ OD X 6.5″ L (63.5mm OD X 165mm L)

Includes pump with integrated brushless motor control, -8AN male inlet fitting, -6AN male oulet fitting.
